CPT (Cone Penetration Test) in Ajax, Ontario

The most common mistake we see in Ajax is specifying deep foundations without running a CPT first. A contractor gets a soil report showing soft silts near the Duffins Creek floodplain and immediately prices piles. Then the cone data comes back and reveals a dense sand layer at 6 meters that could have supported footings. That mistake costs tens of thousands. Our lab runs cone penetration tests across Durham Region, from the older neighborhoods near Highway 401 to the new subdivisions pushing east toward Greenwood. Knowing what lies beneath before you commit to a foundation strategy changes everything. Many jobs combine the CPT with test pits to visually confirm transitions, especially where the glacial till is shallow near the waterfront.

A single CPT sounding often saves more in foundation costs than the entire geotechnical program.

Process and scope

In Ajax we frequently encounter a tricky stratigraphy. The surface is often a silty clay crust that masks what sits below. A standard penetration test might refuse at 3 meters on a gravel lens and mislead the entire design. The CPT reads continuously. Our 20-tonne rig pushes through that crust and gives us pore pressure, tip resistance, and sleeve friction every 2 centimeters. That resolution matters when you are working near the Lake Ontario bluffs where the soil profile changes fast. For sites with suspected fill from the old Pickering Works boundary, we often pair the CPT with grain-size analysis to confirm fines content. And when the cone detects layered sands with high silt, we recommend following up with liquefaction assessment under the NBCC 2015 seismic provisions for the Ajax-Pickering corridor.

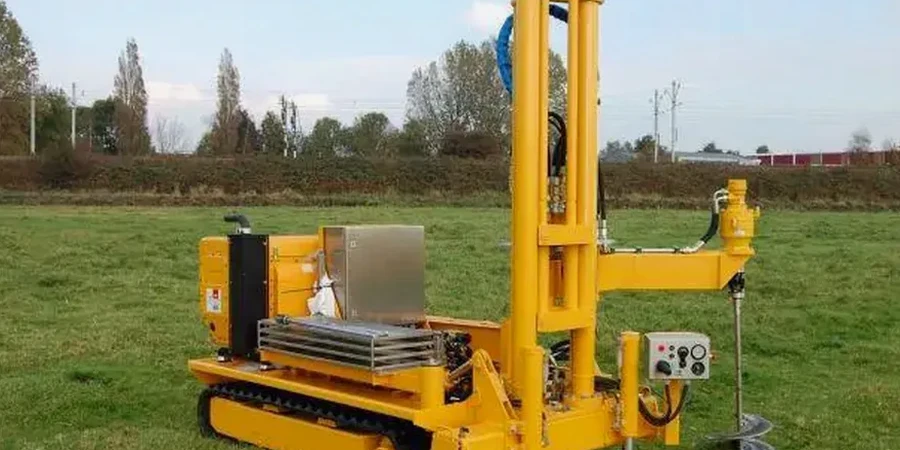

CPT (Cone Penetration Test) in Ajax, Ontario

Local ground factors

We worked on a site off Bayly Street where the pre-design boreholes logged stiff clay to 8 meters. The architect went ahead with a mat foundation. During excavation the contractor hit a sand seam with artesian pressure. The pit flooded. A single CPT sounding with pore pressure measurement would have caught that seam immediately. The u2 sensor sees the pressure spike in real time. No waiting for lab results. No guessing. In Ajax, the contact between the Halton Till and the underlying Scarborough Formation sands often carries perched groundwater. The cone sees it. The drill rig might miss it. That difference defines whether your excavation stays dry or turns into an emergency dewatering operation.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering.co

Video overview

Reference standards

ASTM D5778-20 (CPT), NBCC 2015 Seismic (Site Class), CSA A23.3 Annex A (Foundation Design)

Other technical services

CPTu with Pore Pressure

Standard piezocone testing with u2 measurement at the shoulder position. Includes corrected cone resistance qt, friction ratio, and pore pressure ratio Bq plots.

Seismic CPT (SCPTu)

Same as CPTu with an integrated geophone for downhole shear wave velocity. Provides Vs profiles for NBCC site classification without a separate borehole.

Dissipation Tests

Pore pressure decay monitoring at selected depths to estimate hydraulic conductivity and consolidation characteristics in Ajax silts and clays.

Typical parameters

Parameter	Typical value
Cone Capacity	20 tonnes (push force)
Maximum Depth	Up to 30 m in Ajax soils
Measurement Interval	20 mm (continuous digital)
Parameters Recorded	qc, fs, u2 (pore pressure)
Standard	ASTM D5778-20
Reporting Time	24 hours (digital logs)
Soil Friction Ratio	Automated Rf = fs/qc (%)
Pore Pressure Sensor	Integrated u2 at shoulder

Questions and answers

How much does a CPT test cost in Ajax?

In Ajax our CPT work typically runs between CA$220 and CA$380 per sounding, depending on depth and whether pore pressure or seismic modules are included. Deeper soundings over 20 meters with SCPTu fall at the upper end due to additional rig time and processing.

How long does it take to get CPT results?

We deliver digital logs within 24 hours of the field work. The cone records continuously and the data file is transferred directly to our processing software. No delays from sample transport or lab curing — the numbers are ready the next morning.

Can CPT replace boreholes completely on my Ajax project?

Not completely, but it reduces how many you need. The CPT gives you continuous stratigraphy and pore pressure. You still need a borehole for sampling and index testing — Atterberg limits, grain size, moisture content — to calibrate the soil behavior type from the cone data.
